Solar Charge Controllers

8 products in total

60110423 Front2Art. Nr.: 60110423Art. Nr.: 60110423

Suntrack Pro 12-48 V – 40 A

View product
60110420 Front1Art. Nr.: 60110420Art. Nr.: 60110420

Suntrack Pro 12-48 V – 65 A

View product
60110421 Front1Art. Nr.: 60110421Art. Nr.: 60110421

Suntrack Pro 12-48 V – 80 A

View product
60111430 front2Art. Nr.: 60111430Art. Nr.: 60111430

Suntrack DUO 12 V / 50 A

View product
60111431 front1Art. Nr.: 60111431Art. Nr.: 60111431

Suntrack DUO 24 V – 30 A

View product
60111436 FrontArt. Nr.: 60111436Art. Nr.: 60111436

Suntrack 50

View product
60110409 FrontArt. Nr.: 60110409Art. Nr.: 60110409

Solar Charge Controller PWM 12 V – 10 A

View product
60110411 FrontArt. Nr.: 60110411Art. Nr.: 60110411

Solar Charge Controller PWM 12 V – 20 A

View product

Suntrack: Charge Controllers for Solar Energy

Under the name Suntrack, we offer a complete range of charge controllers for solar energy, designed for maximum efficiency and durability. This component is the key link between the solar panel and battery, ensuring safe charging voltage. Below is an overview of the different models with their power, technology and application.

PWM Suntrack solar charge controller

PWM Suntrack: Entry-Level Model for Basic Solar Installations

The Suntrack PWM controllers are entry-level models for small solar energy installations, such as systems for trickle charging and low-power applications. PWM stands for Pulse Width Modulation technology, based on efficient transistors. The “raw” energy generated by the sun is converted by the controller in a single step into a stable charging voltage. This prevents overcharging and ensures a full charge for the battery. This basic controller is available for 10 A and 20 A output current. The charging voltage is adjustable based on the applied battery chemistry.

Specifications PWM Suntrack Series

  • Charging technology: PWM (Pulse Width Modulation)
  • Charging current: 10 A, 20 A, 30 A
  • Battery compatibility: 12, 24 VDC
  • Number of power inputs: 1 (solar panels)
  • Efficiency: basic, suitable for simple installations
  • Protection: automatic shutdown at (too) low battery voltage
  • Housing: standard protection
  • Configuration: basic settings
Suntrack 50 solar charge controller

Suntrack 50: Compact MPPT Solution with Smart Monitoring

The Suntrack 50 series is a compact and efficient solution for small to medium-sized off-grid solar energy systems. The WhisperPower Suntrack 50 MPPT Solar Charge Controller connects solar panels to a 12, 24, 36 or 48 VDC battery and quickly and efficiently charges it thanks to advanced Maximum Power Point Tracking (MPPT) technology. Even in cloudy and variable weather conditions, the system extracts maximum energy and keeps the battery in optimal condition. Standard equipped with Bluetooth connectivity and the Ecosolar monitoring app, allowing real-time data to be easily read and managed.

Specifications Suntrack 50 Series

  • Charging technology: MPPT (Maximum Power Point Tracking)
  • Charging current: up to 50 A
  • Battery compatibility: 12, 24, 36, 48 VDC
  • Number of power inputs: 1 (solar panels)
  • Efficiency: high, suitable for smaller systems
  • Connectivity: standard Bluetooth and Ecosolar monitoring app
  • Housing: IP54, dust and splash resistant
  • Configuration: fully configurable via app

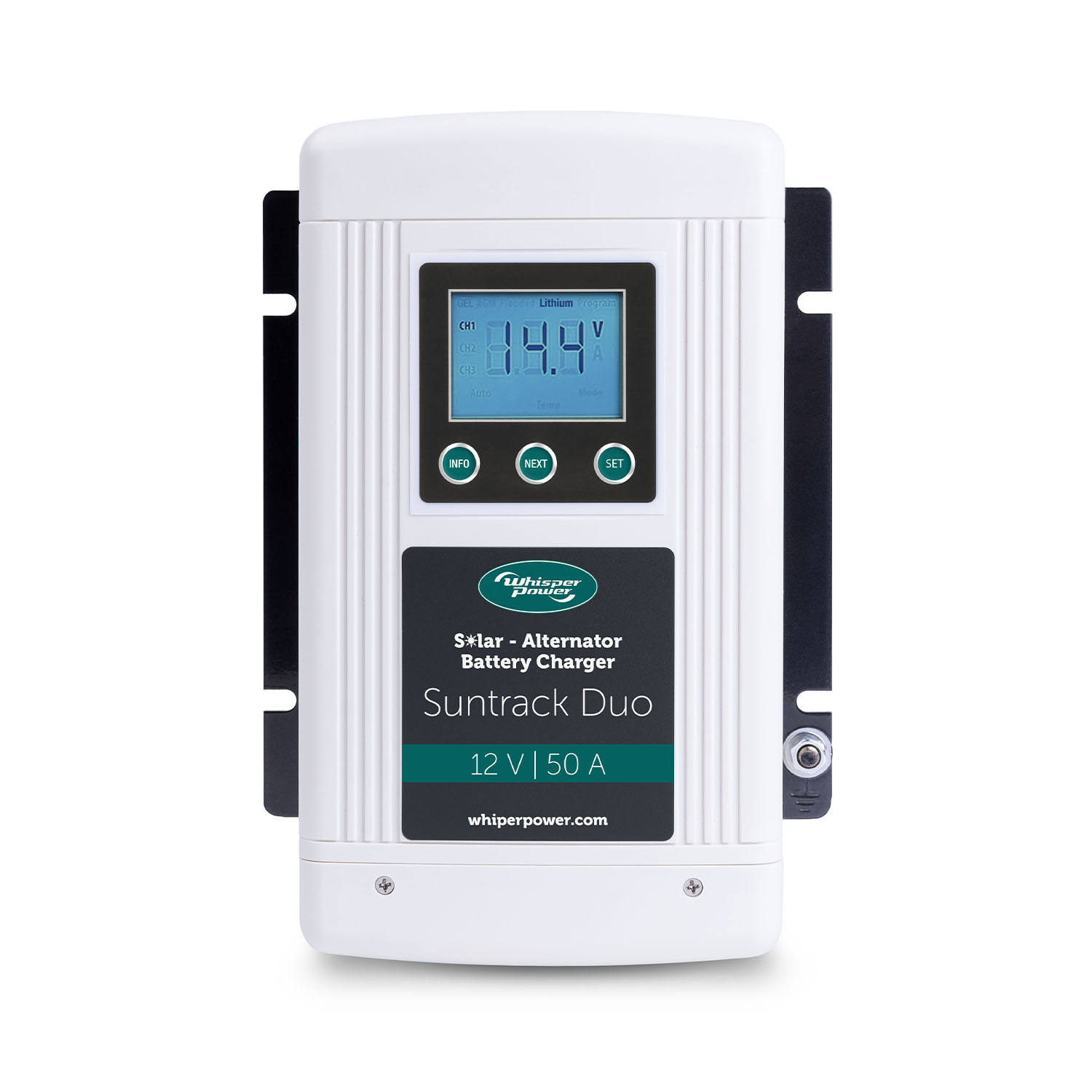

Suntrack Duo solar MPPT charger with alternator input for hybrid energy

Suntrack Duo: MPPT Charger with Alternator Input for Hybrid Energy

The Duo series is a versatile battery charger for use in homes, boats, campers, caravans, off-road and commercial vehicles. This fully automatic, multi-stage multi-input charger utilizes both solar energy and an alternator to charge the house battery. The integrated MPPT Solar Controller maximizes solar yield, while the alternator efficiently recharges during engine operation. With two separate inputs, the charger automatically switches between solar energy and engine power without external relays. The battery charger completes a full charging cycle up to the float stage and supports multiple battery types, including GEL, AGM, Flooded, Custom Programmable and Lithium. In the float stage, the charger switches to power mode to support DC loads on board.

Specifications Suntrack Duo Series

  • Charging technology: MPPT + alternator charge control
  • Charging current: dependent on solar and alternator input
  • Battery compatibility: 12, 24, 48 VDC
  • Number of power inputs: 2 (solar panels and alternator)
  • Efficiency: high yield through automatic switching
  • Connectivity: optional with additional modules
  • Housing: robust for marine and mobile applications
  • Configuration: automatic switching between solar energy and alternator
Suntrack Pro powerful MPPT controllers for large solar installations

Suntrack Pro: Powerful MPPT Controllers for Large Solar Installations

The Suntrack Pro series is designed for off-grid and hybrid solar energy systems in marine, mobile and stationary applications. These advanced MPPT charge controllers ensure efficient and reliable energy storage by continuously determining the optimal voltage from the solar source using intelligent Maximum Power Point Tracking (MPPT). This maximizes energy yield, even under changing conditions such as sunlight and temperature. With multi-stage, temperature-compensated charging, batteries charge quickly and safely, supporting various battery types. The Suntrack Pro controllers are installed directly between the solar panel and the battery bank, providing a robust and efficient solution for demanding energy needs.

Specifications Suntrack Pro Series

  • Charging technology: MPPT (Maximum Power Point Tracking)
  • Charging current: 40 A, 65 A, 80 A
  • Battery compatibility: 12, 24, 48 VDC
  • Number of power inputs: 1 (solar panels)
  • Efficiency: very high, optimal energy yield
  • Connectivity: optional via external modules
  • Housing: robust, suitable for demanding environments
  • Configuration: multiple advanced charging profiles
