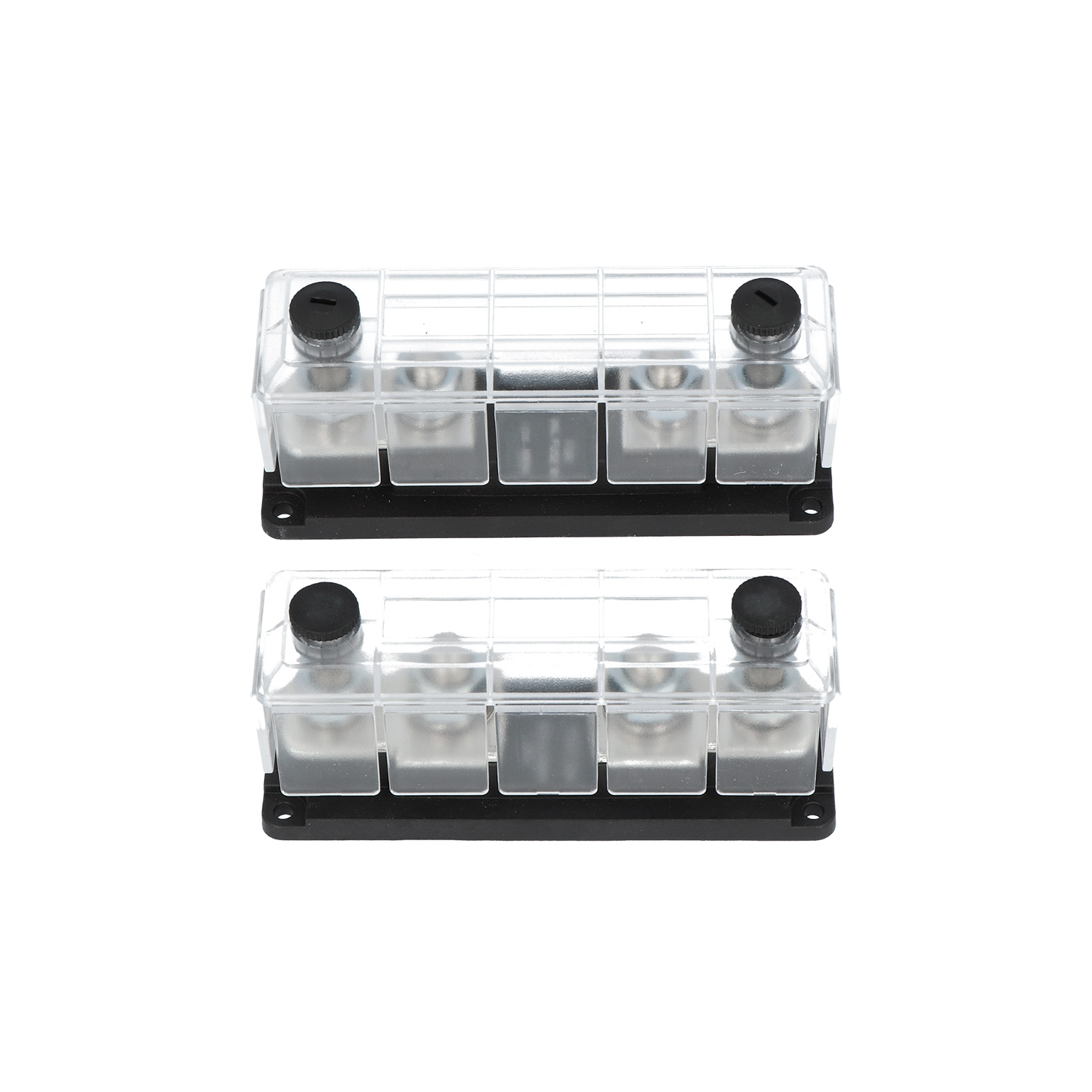

MDC Heavy Duty Fuse Holders

A wide range of fuseholders are available in the WP-MDC range, covering fuse Amp ratings from 35 A up to 600 A. Fuseholders are offered for the Mega, ANL and Class- T type of fuses, providing solutions for a wide range of applications.

Spécifications du produit

NUMÉRO D'ARTICLE
50212016MDC-HD ANL Fuse holder heavy duty (50 V / up to 600 A) M8 version
50212017MDC-HD ANL Fuse holder heavy duty (50 V / up to 600 A) M10 version
50212018MDC-HD Class-T Fuse holder heavy duty (50 V / 225 A - 400 A) M10 version
50212019MDC-HD Class-T Fuse holder heavy duty (50 V / 450 A - 600 A) M10 version
DIMENSIONS ET POIDS
Dimensions (LxWxH)50 x 150 x 64.5 mm
SPÉCIFICATIONS TECHNIQUES
Grid Size1 x 1.78
Maximum Current35 .. 600 A
Maximum Voltage50 V
Connection Stud SizeM8 / M10
Fuse Range40 .. 300 A
